How to Achieve Exact Geometric Symmetry in Large-Scale Kinetic Sculptures?

For the sculptor transitioning from the static to the kinetic, there is a moment of profound frustration. A design, perfectly balanced and aesthetically sound on paper, shudders, stalls, or self-destructs when animated. The common advice—use stronger motors, reinforce the joints—treats the symptoms, not the disease. These approaches fail because they overlook a fundamental law of complex mechanical systems: failure is not born of grand mistakes, but of microscopic inaccuracies accumulating into catastrophic force. The elegant sweep of a 10-meter arm is compromised by a 0.5-millimetre alignment error at its pivot.

This guide refutes the notion that kinetic art is simply static sculpture with a motor attached. Instead, it posits that a successful large-scale kinetic piece is an exercise in uncompromising physics and mathematical precision. The true challenge lies not in the artistic vision, but in translating that vision into a system that can withstand its own motion. We will dissect the engineering principles that govern these works, moving beyond the what and into the quantitative why.

This analysis will deconstruct the core engineering challenges, from the physics of motor failure and multi-axis synchronization to the material science of structural components. We will examine how to integrate algorithmic precision into physical workflows and even draw critical lessons from the seemingly unrelated world of micro-kinetic fashion. The objective is to equip you with an engineering mindset, enabling you to build installations that are not only beautiful but also mechanically viable and enduring.

Why Do Micro-Millimetre Miscalculations Cause Motor Failure in Moving Art?

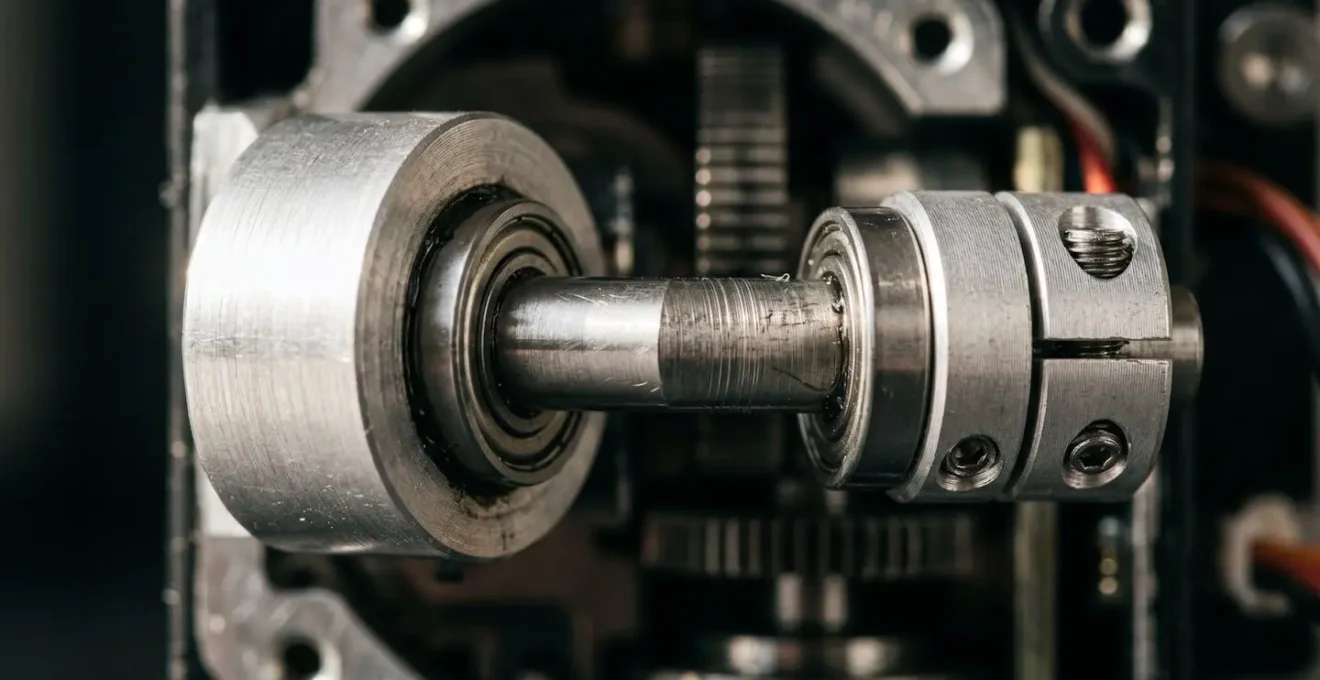

Motor failure in a kinetic sculpture is rarely due to an under-powered motor; it is the terminal symptom of a disease called resonant cascade failure. A micro-millimetre misalignment or a timing error of a few milliseconds introduces a minute, unwanted force. In a single cycle, this force is negligible. But over thousands of cycles, this rhythmic, predictable error resonates through the structure. The motor is forced to work against not only the piece’s inertia but also this compounding, parasitic load. This additional work manifests as heat, which increases electrical resistance, demanding more current and generating more heat in a feedback loop that inevitably leads to burnout.

The precision required is absolute. For instance, the celebrated Kinetic Rain sculpture at Singapore’s Changi Airport features 1,216 droplets moving in perfect unison. An industry analysis reveals that a 1mm precision over 25 feet was maintained, with a maximum offset between any two adjacent elements of just 0.25 mm. Exceeding this tolerance would not merely create a visual imperfection; it would introduce harmonic dissonance into the mechanical system, exponentially increasing stress on the hundreds of synchronized servomotors.

This illustrates the core principle: the system is not a collection of individual parts, but a single, interconnected machine. The misalignment of one bearing creates a vibration that propagates through a support arm, which in turn applies an off-axis torque to a gear, which then strains a motor. The motor you replace is the victim, not the culprit. The true error was in the initial calculation or fabrication, measured in microns.

How to Program Microcontrollers to Synchronise Multiple Rotational Axes?

Synchronizing hundreds of motors cannot be achieved through brute-force centralized processing. The communication latency, even measured in microseconds, would make true geometric lockstep impossible. The solution is a distributed control architecture with a global synchronization trigger. In this model, intelligence is pushed down to small, localized groups of motors, each managed by its own microcontroller. A central controller does not command individual motor movements in real-time; instead, it broadcasts the *target positions* for the next state to all microcontrollers simultaneously.

Each microcontroller then calculates the path for its own motors to reach the target. Crucially, no motor moves until a global “sync” signal is received. This signal, often a simple rising edge on a dedicated wire daisy-chained through all modules, acts as the starting pistol. This ensures that every motor begins its journey at the exact same instant, regardless of computational load or communication distance from the central controller. According to the documentation for one large-scale kinetic project, this method allows for precise synchronization by transmitting all positions first, then triggering movement via a hardware sync pin.

However, sensor resolution and physical precision are not the same. As the project team notes, fine-grained sensor data is not a guarantee of absolute accuracy:

The motors have a large gear reduction, so each encoder step is tiny, only about 13.7 microns of movement of the ball. While we have very fine-grained sensor resolution, the precision is closer to 0.5mm for any arbitrary position.

– Hackaday.io Kinetic Sculpture Project Team, Kinetic Sculpture Project Documentation

This discrepancy between theoretical encoder steps and real-world achievable precision highlights the importance of mechanical factors. Backlash in gears, flex in linkages, and thermal expansion all contribute to an “error budget” that software alone cannot eliminate. The program must be written to account for, and in some cases compensate for, the physical realities of the machine.

The Weight Distribution Error That Snaps Delicate Aluminium Support Struts

Structural failure in kinetic sculptures often originates not from the load of the static weight, but from the dynamic, often invisible, loads introduced by movement and environmental changes. A primary and frequently underestimated factor is thermal expansion. An aluminum support strut that is 10 meters long at 20°C will change length based on ambient temperature. Engineering specifications indicate that 2024 aluminum alloy has a 23.2 µm/m·°C thermal expansion coefficient. For a 10-meter strut, a mere 15°C temperature increase results in a 3.48mm change in length. If this strut is bolted rigidly at both ends, it will not simply expand; it will bow, creating immense internal stress. This bowing alters the entire weight distribution of the sculpture, placing loads on components and joints that were never factored into the original static design, leading to fatigue and eventual failure.

The choice of material is therefore a complex compromise between weight, strength, cost, and environmental stability. A material with excellent fatigue resistance might have poor corrosion resistance, requiring coatings that add weight and complexity. The following table provides a high-level comparison of common aluminum alloys used in structural applications, illustrating the trade-offs involved.

The selection of an appropriate alloy is a critical engineering decision that balances various material properties. A common mistake is to select an alloy based solely on strength or cost, without considering its performance in a dynamic, outdoor environment. The table below illustrates the trade-offs for three common structural aluminum alloys.

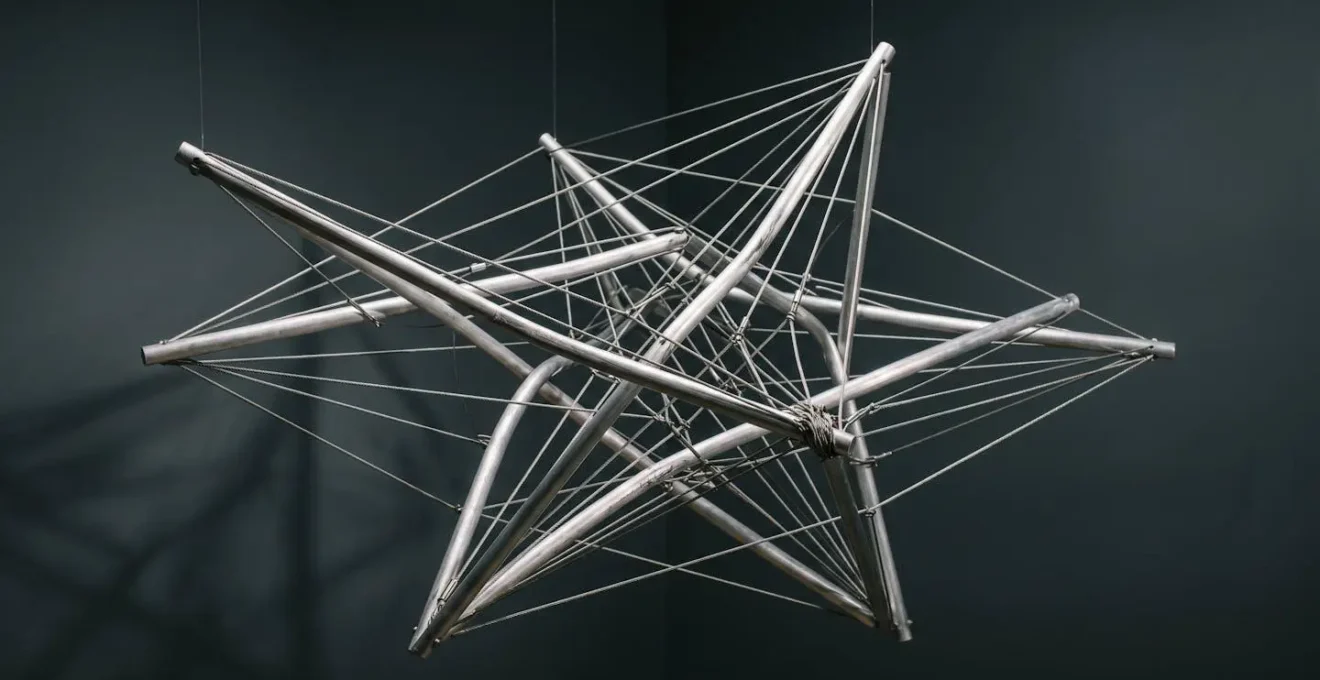

Therefore, the design must account for these dynamic forces from the outset. This may involve incorporating expansion joints, using materials with lower thermal coefficients, or designing support systems like tensegrity structures where loads are distributed through tension rather than compression, allowing the structure to “breathe” with temperature changes.

CNC Machined Parts or Hand-Tooled Joints: Which Survives Outdoor Exhibition Better?

The debate between CNC machining and hand-tooling is not about aesthetics, but about repeatable precision and material integrity. While a hand-tooled joint can be a work of art, it is a unique instance. A CNC-machined part is a perfect, repeatable copy, which is essential for a large, multi-component system. For outdoor survival, the key factors are material selection, tolerance control, and protective finishing—all of which are better managed in a CNC workflow. Aluminum alloy 2024, for example, has excellent strength and fatigue resistance, but its high copper content gives it poor corrosion resistance. This is not a negotiable point; it’s a chemical fact. Anodizing or cladding is not an optional extra; it’s a mandatory step for outdoor survival, and this process is more consistently applied to parts with the smooth, precise surfaces produced by CNC machining.

Furthermore, heat management during fabrication is critical. As noted in one CNC machining guide for aluminum, the material’s high coefficient of thermal expansion can severely affect tolerances if the workpiece overheats during the cutting process. A skilled CNC operator using optimized toolpaths and coolants can manage this heat, ensuring the final part’s dimensions are within the required micron-level tolerances. This level of thermal control is nearly impossible to achieve with hand tools, where friction can easily cause localized heating and warping.

The verdict is unequivocal from an engineering standpoint: for structural components in a large-scale outdoor kinetic sculpture, CNC-machined parts are superior. They provide the necessary repeatability for system-wide symmetry, allow for the precise management of material-specific weaknesses like corrosion, and maintain the tight tolerances required to prevent resonant cascade failures.

When to Perform the Final Calibration Check Before Unveiling a Kinetic Piece?

The final calibration of a kinetic sculpture is not a single event but a multi-stage process designed to account for mechanical settling and environmental variance. A piece calibrated in a climate-controlled workshop will behave differently under the thermal and physical stresses of its final exhibition environment. A “final check” 30 minutes before unveiling is merely a systems check; the critical calibrations must occur in the preceding 24-48 hours on-site. The goal is to calibrate the system not to a theoretical ideal, but to its actual operational state in its specific environment.

This process begins with a ‘burn-in’ period, allowing the mechanism to run continuously for an extended time. This lets new components, like gears and bearings, ‘settle in,’ revealing any initial misalignments or friction points that were not apparent in a static state. Only after this mechanical settling can true calibration begin. The most crucial calibrations are those related to thermal expansion. A ‘cold-soak’ calibration should be performed at the coolest expected time of day (typically pre-dawn), and a ‘hot-check’ should be done at the peak temperature. The software must then be able to interpolate between these two calibrated extremes.

The final perceptual adjustments—checking sightlines and ensuring visual symmetry from key viewing angles—are the last step in the process, but they rely on the foundational mechanical and thermal calibrations being absolute. While technical documentation may show that a system can achieve 0.5mm precision for arbitrary positioning with 13.7 micron encoder steps, this is only true if the system’s physical zero point has been accurately established for the current environmental conditions.

How to Integrate Algorithmic Design Tools into Traditional Manufacturing Workflows?

Integrating algorithmic design (using tools like Grasshopper, Houdini, or custom Python scripts) into a traditional metalworking studio is fundamentally about shifting the source of truth from a static drawing to a dynamic, parametric model. The model is not just a picture of the final piece; it is a digital twin that procedurally generates the fabrication data. This creates a seamless, data-driven pipeline from concept to physical object, drastically reducing the potential for human error in translation.

In a traditional workflow, a change in one component requires manually redrawing blueprints and recalculating dimensions for all connected parts. In an algorithmic workflow, the artist-engineer modifies a single parameter—such as the curvature of an arm or the number of elements—and the algorithm automatically regenerates all associated parts, updates the bill of materials, and exports new, error-checked cutting files (STEP, DXF) for the CNC machine. This approach was critical in complex projects like the Anthozoa sculpture, where 120 linear DC-servomotor drives from FAULHABER had to be perfectly choreographed. The precision of the digital model directly translated to the flawless physical movement.

The table below contrasts the key stages of a traditional versus an algorithmically-integrated workflow, highlighting the quantum leap in precision and efficiency.

The integration is not about replacing the artisan’s skill but augmenting it. The sculptor’s intuitive understanding of form and material is encoded into the rules of the algorithm. The algorithm then handles the laborious, error-prone task of calculating every joint, angle, and cut with inhuman precision, freeing the artist to focus on the system’s behavior and aesthetics at a higher level.

Why Do Heavy Servomotors Completely Destroy the Drape of Delicate Chiffon?

This question, though it seems to come from the world of fashion, exposes a universal engineering principle highly relevant to large-scale sculpture: force decoupling. The problem is not the motor’s weight itself, but its direct physical coupling to the delicate material. The chiffon’s natural, fluid drape is governed by gravity and its own minimal internal structure. A servomotor introduces a concentrated, rigid mass point that creates a hard pivot, completely overriding the fabric’s inherent properties. The chiffon no longer drapes; it is simply tented over a heavy, unyielding object.

The solution is to separate the component that generates force (the motor) from the component that expresses movement (the chiffon). This can be achieved through several techniques that are directly scalable to larger applications. A Bowden cable system, familiar from bicycle brakes, allows a motor mounted on a rigid, load-bearing part of the body to actuate a mechanism several feet away, transmitting force through a flexible but incompressible cable. The fabric is only attached to the lightweight end mechanism, preserving its drape. Similarly, lightweight linkages or Shape Memory Alloys (SMAs) can translate the motor’s rotation into a desired motion without transferring the motor’s mass.

Continuous servo motors, as described by Wonderful Idea Co., offer another path. Instead of holding a rigid position, they provide controlled speed and direction, allowing for more playful, organic movements that might work with the fabric’s properties rather than against them. However, for truly preserving drape, physical separation of mass is key. This principle is identical to designing a large kinetic sculpture where a massive hydraulic ram is hidden in the base, actuating a delicate, lightweight element at the sculpture’s extremity via a concealed linkage, thus preserving the illusion of effortless motion.

How to Integrate Moving Mechanical Elements into Wearable Runway Fashion?

Integrating mechanical elements into fashion successfully requires treating the human body as the primary structure and the garment as the aesthetic skin. The engineering principles are identical to those in large-scale sculpture, merely adapted in scale: power management, structural mounting, and force decoupling. The failure of many wearable tech pieces can be traced to violating these principles, such as mounting a heavy battery pack directly onto soft fabric.

As demonstrated in projects integrating Micro:bit and servo motors into clothing, a key insight is the separation of the artistic element from the programming and engineering content. A successful piece requires equal attention to both. Power is a primary constraint. Motors and microcontrollers require a stable power source, often an external battery pack, which becomes the heaviest single component. The first rule is to mount this mass onto a “hard point” on the body—a belt, a harness, or a reinforced shoulder structure—never on the draping fabric itself. Power and control signals are then routed to the smaller, lighter mechanisms through thin, flexible wires concealed within seams.

The control of these elements is managed by precise electrical signals. As technical specifications indicate, the accurate positioning of a servo motor is dependent on PWM signal control with precise pulse width timing. This is managed by a microcontroller which, like its large-scale counterpart, acts as the brain. The challenge is miniaturization. The entire system—power source, controller, motor, and linkage—must be small and light enough not to impede the wearer’s movement or destroy the garment’s silhouette. This forces the designer to innovate, using the smallest possible motors and leveraging mechanical advantage through clever linkages, a direct parallel to the efficiency demanded in monumental kinetic art.

Ultimately, this micro-scale application provides a potent lesson for the large-scale sculptor. The extreme constraints of wearable kinetics—zero tolerance for excess weight, absolute need for reliability, and the necessity of decoupling force from form—are the very same principles that lead to elegant, efficient, and enduring design in monumental sculptures. Mastering them on a small scale provides an invaluable perspective for engineering them on a grand scale.
