How to Use 3D Building Data to Eliminate Costly Construction Clashes

For any lead civil engineer, it’s the recurring nightmare on a multi-million-pound project: the moment on-site when a 3-metre-wide HVAC duct meets an immovable structural steel beam. The clash, invisible on isolated 2D drawings, becomes a tangible, costly reality, triggering delays, rework, and budget overruns. For decades, the industry relied on light tables and manual overlays, a system fraught with human error. The advent of Building Information Modelling (BIM) promised a solution, a digital panacea to these physical collisions.

Yet, many firms invest in expensive software only to see the same problems persist. They run clash reports, they hold coordination meetings, but the fundamental disconnects remain. This happens because the tool is mistaken for the solution. The real issue is not a lack of technology, but a lack of systemic discipline. If the true key to eliminating disastrous and expensive on-site clashes was not just owning 3D software, but enforcing a non-negotiable data management protocol?

This is the core principle of effective BIM coordination: establishing a single source of truth (SSoT) where every digital component is treated with the same gravity as its physical counterpart. It’s a shift from reactive clash detection to proactive clash avoidance. This requires a rigorous, systems-focused approach that permeates every project stage, from initial model integration to the final pre-pour checks.

This article provides the technical framework for implementing such a system. We will dissect the process of building a flawless federated model, enforcing version control, selecting the right tools, and executing clash detection at the most critical junctures. By focusing on process over platform, you can de-risk your project and ensure what is built digitally is what gets built physically.

Why Do Isolated 2D Blueprints Inevitably Lead to Disastrous Plumbing Collisions On-Site?

The fundamental flaw of a 2D-based workflow is data isolation. The architectural, structural, and MEP (Mechanical, Electrical, and Plumbing) disciplines work in parallel universes, each producing a set of drawings that is internally consistent but externally ignorant. A plumbing riser is drawn on one sheet, a cable tray on another, and a primary beam on a third. There is no single environment where these elements are forced to coexist until the moment of physical installation on-site. By then, it’s too late.

This siloed approach guarantees discrepancies. A change made to a structural column by one team may not be manually cross-referenced against the latest HVAC layout, leading to direct spatial conflicts. These are not minor issues; they are systemic failures that cascade into significant financial burdens. On-site rework is exponentially more expensive than digital correction, involving deconstruction, material waste, and schedule delays. In fact, industry analysis shows that rework often accounts for up to 12% of the total project cost, a direct consequence of coordination failures originating in the design phase.

The transition to a 3D, model-based approach is not merely about better visualization; it is about creating a unified digital reality. In a properly managed BIM environment, the structural frame, the ductwork, and the plumbing systems all occupy the same digital space. Conflicts are not a matter of interpretation but a mathematical certainty that can be identified and resolved with a few clicks. The financial incentive is substantial. One detailed case study on a design-build project revealed that a $200,000 investment in BIM coordination translated into over $2.5 million in savings, a 10x return on investment driven almost entirely by clash avoidance.

How to Integrate Architectural, Structural, and MEP Models into One Flawless Master File?

Creating a flawless master file, or federated model, is the cornerstone of clash avoidance. It is the designated Single Source of Truth (SSoT) for the project. This process is not a simple file import; it’s a governed procedure for combining separate, discipline-specific models into a single, coordinated whole. The objective is to see how all systems interact in a shared spatial context. Architectural elements provide the building’s shell, the structural model provides the skeleton, and the MEP model fills it with the vital services.

The integration must be managed within a Common Data Environment (CDE), a centralized digital repository where all project information is stored, managed, and disseminated. For UK projects, this process is governed by the ISO 19650 series of standards, which provides a framework for managing information over the whole life cycle of a built asset. Adherence to this standard is not optional for any team serious about de-risking a major project. It dictates how models are named, versioned, and transitioned between different states of maturity.

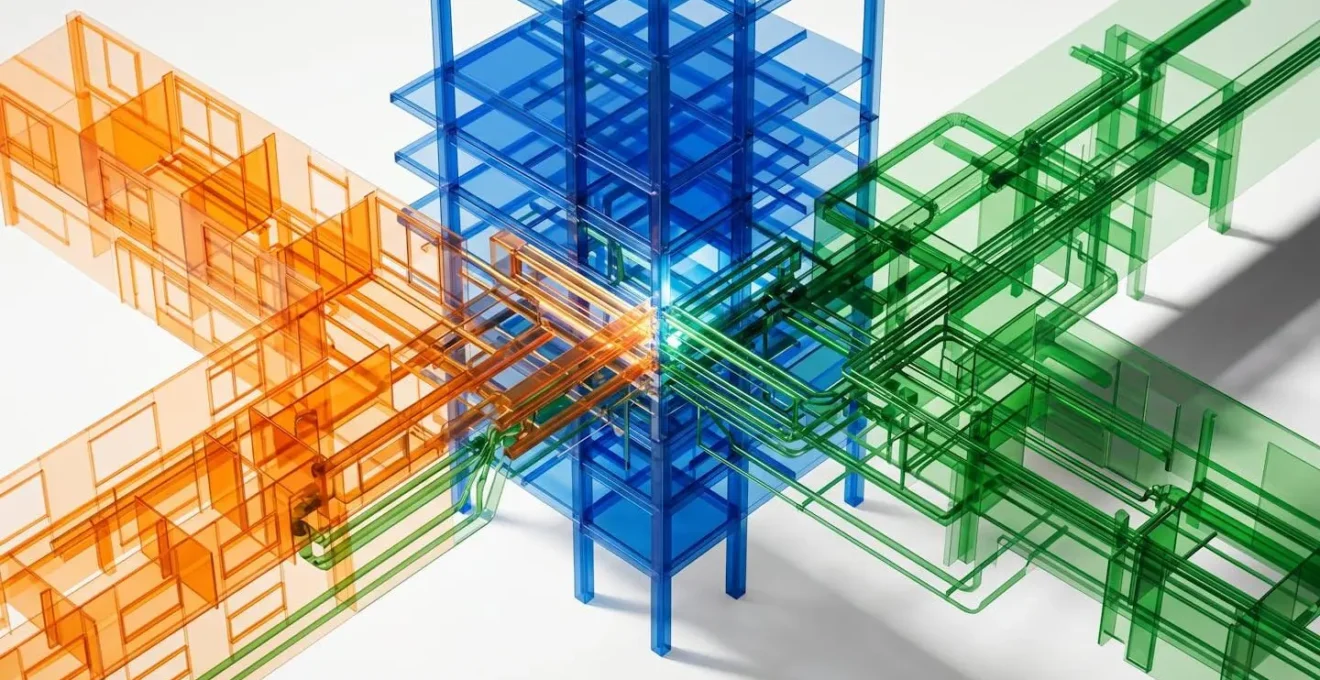

As the visualization demonstrates, the federated model allows teams to see through the layers of complexity, identifying potential conflicts between a green MEP duct and a blue structural beam long before either component is fabricated. This digital rehearsal is where the real value of BIM coordination is unlocked. It transforms the process from a series of disjointed monologues into a collaborative, data-driven dialogue.

The Version Control Error That Causes Contractors to Build from Outdated Specs

A federated model is only as reliable as the data it contains. The single most destructive error in BIM coordination is a failure of version control. This occurs when a contractor or fabricator works from a superseded model or drawing, rendering weeks of careful digital coordination useless. The result is a newly constructed wall being demolished because it was built according to “Revision B” while the design had already progressed to “Revision D.” Industry analysis from Autodesk confirms the scale of this issue, finding that almost half of all rework on construction projects stems from poor data or communication mishaps.

Preventing this requires moving away from email attachments and shared folders, which are breeding grounds for confusion. A robust Common Data Environment (CDE) enforces a strict protocol for model status. Within an ISO 19650-compliant CDE, every file has a clear, unambiguous status that dictates who can access it and for what purpose. A model designated as “Work in Progress” (WIP) is confined to its author’s team, while a “Shared” model is available for coordination across disciplines. Only a model that has been reviewed, approved, and elevated to “Published” status is authorized for use in construction.

This system creates an auditable trail, eliminating the “I didn’t get the memo” excuse. The table below outlines the standard status codes that form the backbone of a secure version control system.

By enforcing this structure, you ensure that the site team can only access models that are fit for purpose. It is a procedural safeguard that is far more effective than any post-mortem analysis. The choice of software to create and manage these models is an important, but secondary, consideration.

Revit or ArchiCAD: Which Handles Large-Scale Hospital Modelling More Efficiently?

The debate between authoring platforms like Autodesk Revit and Graphisoft ArchiCAD is a perennial topic in design offices. Both are powerful tools capable of producing highly detailed models. For a complex, service-heavy project like a £50M hospital, Revit has historically been the dominant platform in the UK market, particularly due to its robust MEP engineering capabilities and widespread adoption among larger consultancies. ArchiCAD is often praised for its architectural design workflow and user interface. However, from a BIM coordination manager’s perspective, focusing solely on the authoring tool misses the bigger picture.

The critical factor is not which software creates the individual models, but which platform can effectively federate and analyze them. The true power in clash avoidance lies in the coordination software that sits on top of the authoring tools. In this domain, platforms like Autodesk Navisworks are the industry standard for a reason. Navisworks is agnostic; it can import models from dozens of different formats, including Revit, ArchiCAD, Tekla Structures, and more, combining them into a single, navigable master file.

Therefore, the question for the lead engineer is not “Revit or ArchiCAD?” but rather, “Does our project mandate the use of a dedicated coordination platform like Navisworks?” For a large-scale hospital project, the answer must be an unequivocal yes. It allows each discipline to work in their preferred authoring environment while ensuring that all their outputs converge into a unified model for clash detection and review. This focus on interoperability and a central coordination hub is far more critical to project success than mandating a single authoring software across all disciplines.

When to Run the Final Automated Clash Detection Report Before Pouring Concrete?

Automated clash detection is not a one-time event; it is a continuous process that matures with the design. Running a single report too early will yield thousands of meaningless “clashes” in an uncoordinated design, while running it too late is merely a historical record of a disaster already set in motion. The timing must be strategic and aligned with project milestones, as defined by frameworks like the RIBA Plan of Work.

During RIBA Stage 3 (Developed Design), the focus should be on high-level “soft clashes.” These are not direct geometric intersections but violations of clearance and access zones. For example, ensuring there is sufficient space around a piece of equipment for maintenance. Tolerances are defined (e.g., a 500mm zone around an air handling unit) and checked between major systems like primary structure vs. main MEP routes.

As the project moves into RIBA Stage 4 (Technical Design), the process escalates to “hard clash” detection. At this point, all disciplinary models should be sufficiently developed to run comprehensive tests between every system (e.g., secondary steelwork vs. plumbing, cable trays vs. fire sprinkler lines). This is an iterative process of running reports, assigning clashes to responsible parties for resolution, and re-running the test on updated models. This disciplined cycle is where the Construction Industry Institute reports that clash detection can significantly improve project efficiency.

The most critical report, however, is the final, fabrication-level “look-ahead” report. This should be run no later than two weeks before a major irreversible commitment, such as pouring a concrete slab or procuring prefabricated components. This report uses the final, “Published” models and has zero tolerance. A mandatory pre-pour or pre-fabrication triage meeting must be held to review any critical clashes found, using a severity matrix to classify them and assign immediate action. This is the last digital checkpoint before the project incurs significant physical cost.

How to Integrate Algorithmic Design Tools into Traditional Manufacturing Workflows?

The complexity of modern architecture often requires moving beyond traditional modelling techniques. Algorithmic and generative design tools, such as Grasshopper for Rhino or Dynamo for Revit, allow architects to script complex geometries that would be impossible to model manually. This is essential for creating parametrically-driven facades, unique structural nodes, or optimized MEP routes. However, these powerful design tools can create a new data silo if not properly integrated into the primary BIM and manufacturing workflow.

The challenge is to ensure that the geometry generated by an algorithm is not just aesthetically pleasing but also manufacturable and coordinated. This requires a direct feedback loop between the generative script and the master BIM model. The output of the algorithmic tool—for instance, the coordinates and cutting patterns for 1,000 unique facade panels—must be seamlessly translated into data that can be consumed by both the federated model for clash detection and the CNC machines on the factory floor.

This integration of design-to-fabrication is a cornerstone of modern construction. It requires that the project’s BIM Execution Plan (BEP) explicitly defines the data formats and transfer protocols for generative design outputs. As the Centre for Digital Built Britain highlights, this level of process standardisation is key to unlocking efficiency. In their guidance on the UK BIM Framework, they state:

A unified global approach will create immediate efficiencies for clients with international supply chains.

– Centre for Digital Built Britain, The UK BIM Framework

This principle applies directly: a unified project approach, where algorithmic design data flows smoothly into the CDE and on to the fabricator, eliminates the risk of building an unbuildable design. It treats the digital script as the first step in a continuous manufacturing process, not an isolated artistic exercise.

The Weight Distribution Error That Snaps Delicate Aluminium Support Struts

In complex structures and facades, geometric clashes are only one part of the risk equation. A far more dangerous error is a failure in structural analysis, particularly concerning weight distribution and load paths. A curtain wall system may fit perfectly within the architectural model, but if the analysis fails to account for wind load, thermal expansion, or the self-weight of the system, the physical result can be catastrophic failure, such as the snapping of delicate aluminium support struts.

This risk is mitigated by integrating Finite Element Analysis (FEA) directly into the BIM workflow. Instead of being a separate process performed by a structural engineer in isolation, the analytical model should be derived from the primary BIM geometry. This ensures that the structural simulation is being run on the exact same components that are being checked for geometric coordination. When the architect adjusts the position of a mullion, the structural engineer’s analysis software should be automatically updated.

This integration is a key component of the “D” in BIM, which extends beyond 3D geometry to include other data dimensions. 4D BIM, for example, links the 3D model to the construction schedule, while 5D BIM adds cost data. By simulating loads and stresses in the 3D model (a 6D analysis), teams can prevent structural failures before a single piece of metal is ordered. This proactive analysis has a profound impact on project certainty. Global data shows that integrating scheduling and analysis via 4D BIM reduces schedule overruns by up to 30% and improves productivity, largely by preventing the kind of structural rework that brings a project to a standstill.

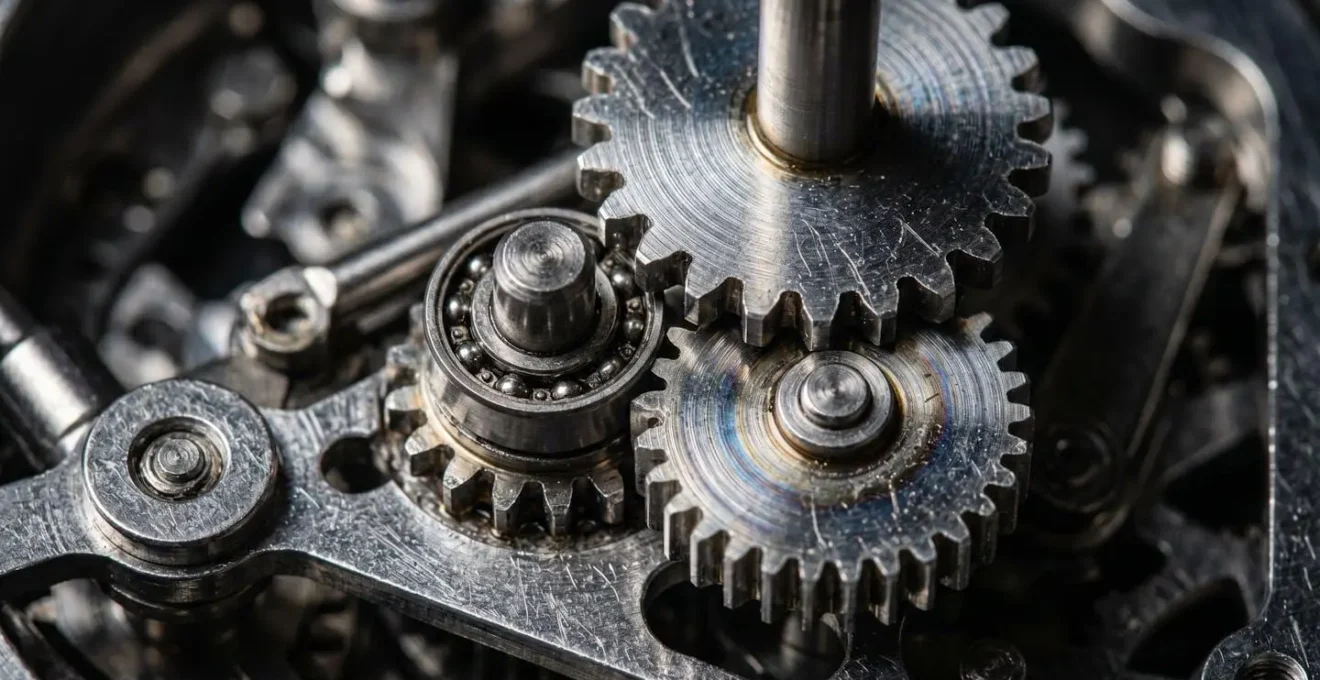

How to Achieve Exact Geometric Symmetry in Large-Scale Kinetic Sculptures?

While few buildings are true “kinetic sculptures,” the principles required to engineer them are directly applicable to the most ambitious elements of modern architecture: retractable stadium roofs, operable building facades, and large-scale modular assemblies. In these systems, achieving exact geometric symmetry and predictable movement is not an aesthetic preference; it is a fundamental requirement for functionality and safety. A deviation of a few millimetres in a single component can cause an entire multi-ton roof structure to jam or fail.

Here, the BIM model transcends its role as a coordination tool and becomes a digital twin for fabrication and assembly simulation. The level of detail must be elevated to LOD (Level of Development) 400, where components are modelled with fabrication-level precision, including welds, bolts, and manufacturing tolerances. The digital model is used to script the entire assembly sequence, simulating the movement of each component to ensure there are no kinematic clashes—conflicts that only occur during motion.

This process relies on absolute data integrity. The digital model’s coordinates are fed directly to the robotic cutting and milling machines that produce the components. There is no room for manual interpretation or measurement. The symmetry and precision achieved in the digital environment must be replicated with near-perfect fidelity in the physical world. This closed loop, from digital design to automated fabrication and back to the model for verification via laser scanning, is the ultimate expression of clash avoidance.

It brings the abstract concept of a ‘single source of truth’ to its logical conclusion, where the data model is not just a representation of the building, but the primary driver of its physical creation. It ensures every component fits and functions exactly as designed.

To protect your project’s budget, timeline, and safety record, the immediate priority is to mandate and implement a Common Data Environment governed by the principles of clash avoidance. Begin by assessing your current data management protocols against the ISO 19650 standard and secure the commitment of all stakeholders to operate within this single source of truth.
