The Physics of Transformation: How to Engineer Moving Mechanics into Runway Fashion

For the avant-garde designer, the ultimate fantasy is a garment that lives and breathes on the runway—a dress that unfurls its wings, a jacket that bristles in response to the audience. The impulse is to grab a motor, a battery, and stitch them onto fabric. This is the first, and most fatal, mistake. Most discussions around kinetic fashion celebrate the spectacle, showcasing the final, magical result while completely ignoring the brutal, unseen engineering war waged to achieve it.

Common advice often revolves around hiding components or using smaller parts, but these are superficial tactics, not a strategy. The core challenge is not one of concealment, but of fundamental physics. Heavy actuators exert immense torsional load on delicate textiles, destroying their natural drape. Power sources generate heat, threatening both the electronics and the model. Wires create points of failure under the stress of movement and the intense heat of stage lighting. The dream of a fluid, organic transformation quickly shatters against the unforgiving reality of mass, torque, and thermal dynamics.

But what if the key wasn’t to fight a losing battle against physics, but to embrace its laws as creative constraints? This guide abandons the superficial for the structural. It reframes kinetic design as an act of engineering, not just artistry. We will dissect the fundamental conflicts between the mechanical and the material, revealing the technical strategies needed to master them. By understanding the forces at play, you can move beyond simple mechanics and begin to engineer truly breathtaking, reliable, and wearable kinetic art.

This article provides a technical roadmap for the ambitious designer. We will navigate the critical challenges, from managing the destructive force of servomotors on chiffon to programming synchronized movements and addressing the complex ethical boundaries of bio-responsive fashion. Prepare to think less like a couturier and more like a roboticist.

Why Do Heavy Servomotors Completely Destroy the Drape of Delicate Chiffon?

The primary reason a heavy servomotor ruins the drape of a fabric like chiffon is torsional load. When an actuator is mounted directly onto a textile, its rotational force is not isolated; it twists the fabric around the motor’s axis. Delicate fabrics have very little shear strength, meaning they cannot resist this twisting motion. The result is bunching, pulling, and a complete loss of the fluid, flowing quality that defines the fabric’s character. You are no longer designing a dress; you are designing a mounting bracket for a piece of machinery.

The second enemy is concentrated mass. A single, heavy motor creates a single point of gravitational pull, disrupting the garment’s entire silhouette. The fabric doesn’t fall naturally from the shoulders or waist; it’s dragged down by an anchor of plastic and metal. To overcome this, one must abandon the idea of a single, powerful actuator and embrace the principle of distributed actuation. Instead of one large motor, consider using multiple, smaller actuators that work in concert. This spreads the weight and mechanical stress across a wider surface area, preserving the integrity of the silhouette.

An even more elegant solution is to eliminate the motor entirely. Shape Memory Alloys (SMAs), like Nitinol, offer a revolutionary alternative. These “muscle wires” contract when a current is applied, creating silent, organic movement without the bulk or torque of a traditional motor. Research on shape memory alloy specifications shows that SmartFlex wires can operate within a stress range of 50MPa to 400MPa, providing significant force from a component as thin as a thread. By integrating Nitinol wires directly into the seams or fabric structure, you can achieve actuation while treating the wire as a textile element, not a foreign object. This method fundamentally respects the fabric’s nature, allowing it to move without being violated by mechanical brutality.

How to Hide Bulky Battery Packs Inside the Seams of a Slim-Fit Jacket?

The challenge of powering a kinetic garment is a direct conflict between energy requirements and aesthetics. A powerful transformation requires significant energy, which historically meant a bulky, heavy battery pack that would deform any slim-fit design. Attempting to hide a single, large LiPo battery is a losing battle; it creates an unnatural bulge that compromises the garment’s line and comfort. The strategic solution is not hiding one large source, but distributing several small ones.

By using multiple, smaller, flat LiPo cells, you can strategically place them along seams, within shoulder pads, or flat against the small of the back. Wired in parallel, they provide the necessary voltage and capacity without creating a single, noticeable mass. This distributed power system mirrors the principle of distributed actuation, respecting the garment’s form by breaking down the problem into smaller, more manageable parts. This approach allows for a couple of hours of power while maintaining a high level of comfort and zero visibility.

Another powerful technique is modularity. Instead of permanently integrating the power and control systems, design them as a removable unit. This not only aids in maintenance and charging but also provides a superior method of concealment and insulation.

This modular philosophy is critical for the longevity and serviceability of any kinetic garment. It treats the electronic components as accessories to the clothing, rather than irreversible and fragile implants.

The Wiring Mistake That Causes Kinetic Dresses to Short-Circuit Under Stage Lights

The single most common point of failure for a kinetic garment in a performance environment is the wiring. The mistake is assuming that standard electronics wire is sufficient. On a runway, two forces conspire to destroy your circuit: constant movement and intense heat. Stage lights are not like household bulbs; they are powerful heat lamps that can dramatically raise the temperature of components and wiring, leading to melted insulation and catastrophic short-circuits. Furthermore, thermal testing data reveals that Nitinol training verification requires submersion in water between 80 to 90°C, indicating how sensitive these high-performance materials are to temperature fluctuations.

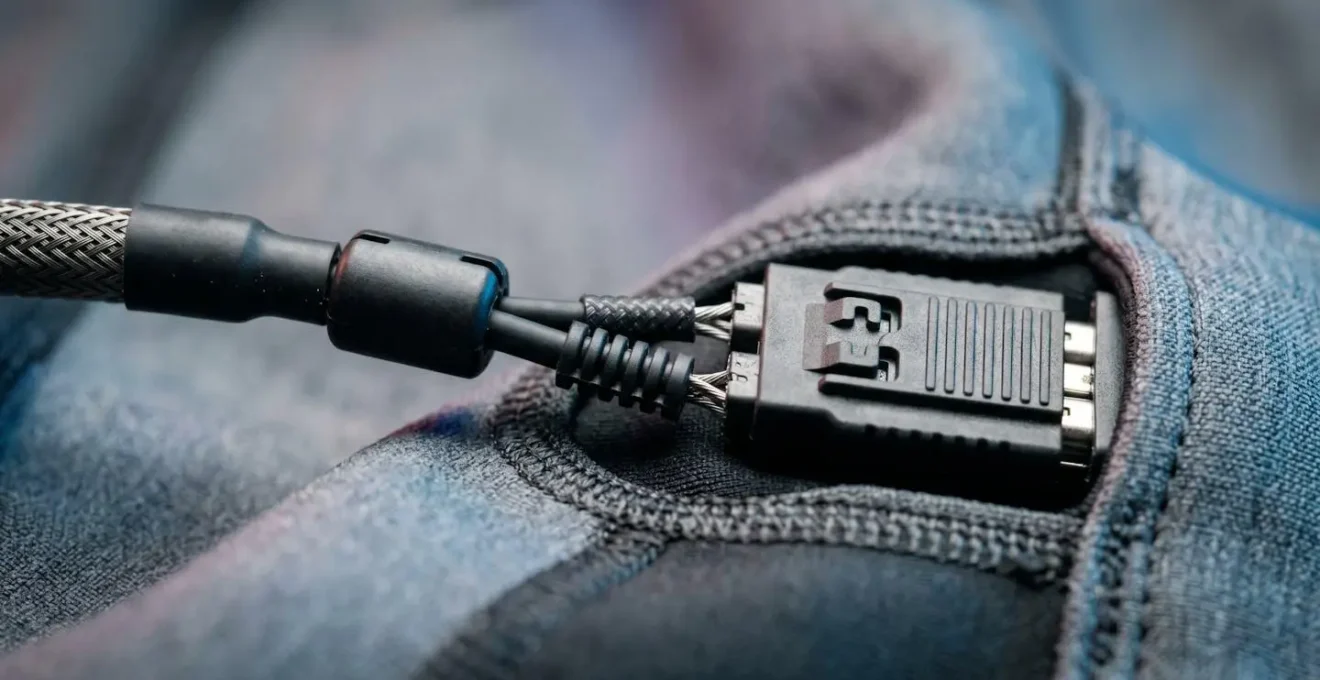

This paragraph introduces the critical concept of thermal management. To ensure the reliability of your design under intense stage lighting, you must protect your wiring. The image below illustrates a professional-grade setup with heat-resistant sheathing and robust connectors.

As the illustration shows, robust wiring is not an afterthought; it is a core design feature. The solution requires a multi-layered defense strategy. Firstly, all wiring must have high-temperature silicone or PTFE insulation. Secondly, at every point where a wire bends or moves with the garment, you must implement strain relief—techniques like creating small service loops of wire or reinforcing the connection point with flexible epoxy. Finally, shielding against electromagnetic interference (EMI) from other stage equipment is crucial. This can be achieved by using shielded cables or by running conductive thread alongside the wiring to act as a ground plane.

Pneumatic Systems or Electronic Motors: Which Offers Smoother Fabric Transitions?

The choice of actuator technology dictates the soul of your garment’s movement. While servomotors offer precision, their movement is inherently robotic, defined by discrete steps and an audible whine. For a more organic, fluid, and silent transformation, designers must look towards alternative systems like pneumatics and Shape Memory Alloys (SMAs).

Pneumatic systems, which use compressed air to inflate or move flexible structures, produce a “breathing” quality of motion. The movement is gentle, diffuse, and can be incredibly powerful, but it requires a network of airtight tubing and a source of compressed air, which can be cumbersome. SMAs, on the other hand, offer the most seamless integration. A Nitinol wire actuator is silent, lightweight, and can be sewn directly into fabric. Its movement quality is unique: a slow, powerful contraction when heated, followed by a gradual relaxation. This introduces the concept of actuation latency—a deliberate delay that can feel more biological and less mechanical than the instant response of a motor.

The following table compares the key characteristics of these actuator technologies, providing a clear framework for deciding which system best suits your artistic vision.

The decision is ultimately artistic. Do you want the sharp, aggressive precision of a motor, or the silent, uncanny grace of a muscle wire? The answer will define the personality of your creation.

When to Trigger the Mechanical Transformation to Maximise Audience Gasps?

Engineering the movement is only half the battle. The other half is choreography. A perfectly executed transformation that occurs at the wrong moment will have no impact. The trigger for the actuation must be as thoughtfully designed as the mechanism itself. The goal is to create a moment of genuine surprise and awe, a collective gasp from the audience. This is achieved by linking the trigger to a powerful external or internal stimulus.

One of the most effective strategies is musical synchronization. Timing the primary mechanical movement to coincide with a dramatic crescendo, a beat drop, or a sudden silence in the runway’s soundtrack creates a powerful synesthetic experience. The movement doesn’t just happen; it becomes an extension of the music, amplifying the emotional impact tenfold. This requires precise programming and collaboration with the sound designer, but the result is unparalleled.

An even more advanced approach is to use environmental or biological triggers. The garment ceases to be a pre-programmed machine and becomes a responsive entity. Using proximity sensors, the dress can react to the approach of another person. As Anouk Wipprecht has demonstrated with her “Spider Dress,” the system can even interpret intent: a slow, cautious approach might trigger a gentle, welcoming gesture, while a rapid, aggressive advance could cause the dress to assume a defensive, menacing posture. This moves the garment from performance art to interactive art, a being with its own sense of personal space. The ultimate expression of this is using biosensors that read the wearer’s own emotional state, such as heart rate or respiration, to drive the transformation. The clothing then becomes a true extension of the wearer’s body and mind. The legendary designer Iris van Herpen articulated the power of this synthesis of art and environment in her work.

The show was staged around Howe’s spherical ‘Omniverse’ sculpture, which served as a portal for the collection. Its title-piece featured an engineered skeleton of spirals made of aluminum, stainless steel and bearings, embroidered with a delicate layering of feathers in cyclical flight.

– Iris van Herpen, Paris Couture Week Hypnosis Collection

The trigger is the story. Whether it’s tied to music, proximity, or the wearer’s own heartbeat, a well-chosen trigger elevates a mechanical dress into a piece of living narrative.

How to Program Microcontrollers to Synchronise Multiple Rotational Axes?

Controlling a single motor is trivial. Controlling a dozen motors, SMAs, and lights in perfect, fluid synchronization is the domain of the microcontroller—the brain of the garment. The challenge is not just activating multiple components, but managing their timing, speed, and position relative to each other across multiple rotational axes. Failure to achieve perfect synchronization results in jerky, uncoordinated movements that shatter the illusion of life.

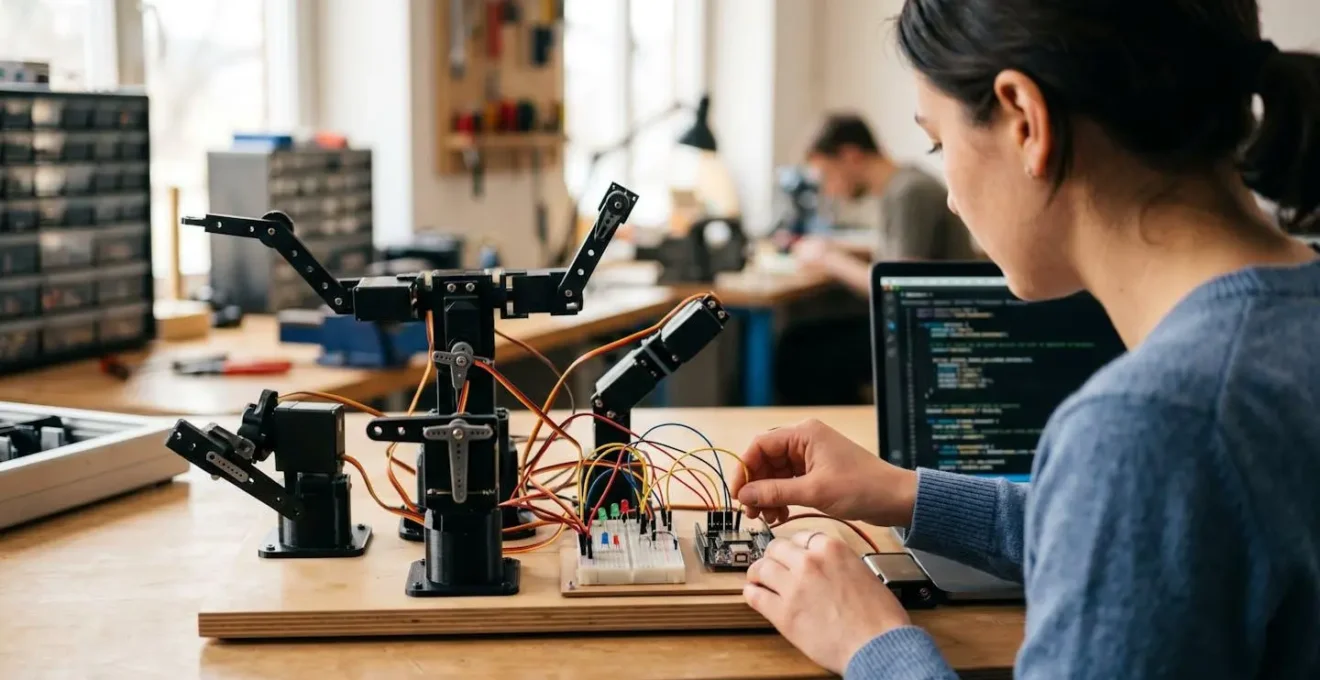

This image shows a typical test setup, where a microcontroller is programmed and debugged before being miniaturized and integrated into the final garment. It is in this phase that the crucial work of synchronization is done.

The programming logic for multi-axis synchronization relies on a non-blocking coding structure. A common beginner’s mistake is to use `delay()` functions, which halt the entire program while one movement completes. This makes simultaneous action impossible. The correct approach is to use a state machine architecture, tracking the time elapsed since the last movement using the `millis()` function. This allows the main loop of the code to run thousands of times per second, constantly checking if it’s time to update the position of each individual actuator. This enables multiple, independent movements to occur smoothly and concurrently.

The choice of microcontroller is also critical. While boards like the Arduino Uno are excellent for prototyping, their size is prohibitive for a wearable. The real work is done on miniaturized boards like the ATtiny85 or the Intel Edison. However, these smaller chips have limitations; microcontroller specifications indicate that the ATtiny requires specific libraries for servo control, and its limited memory can be a constraint for highly complex sequences. Anouk Wipprecht’s work provides an excellent example of high-level integration.

Synchronization is a software problem solved with a hardware-aware mindset. It demands efficient code, a deep understanding of timing, and a processor capable of handling the complexity of your vision.

How to Safely Isolate Bodily Fluids from Exposed Electrical Sensors During a Two-Hour Performance?

A runway show is a high-stress, physically demanding athletic event. Under hot lights and the pressure of performance, the model will sweat. For a kinetic garment with exposed sensors or low-voltage electronics, bodily fluids like sweat—which is saline and conductive—are an existential threat. A single drop in the wrong place can cause a short-circuit, leading to system failure or, in a worst-case scenario, a mild electric shock. Ensuring the isolation of the human from the machine is a non-negotiable safety and reliability requirement.

The first line of defense is conformal coating. This is a thin layer of non-conductive material, typically acrylic or silicone, that is sprayed directly onto the entire circuit board. It creates a microscopic, waterproof barrier that protects the delicate traces and solder points from moisture without adding significant bulk or weight. While not sufficient for full submersion, it is an essential safeguard against ambient humidity and perspiration.

However, coating alone is not enough. The most robust strategy is physical separation through modular insulation. This involves designing the electronics as a self-contained, removable pod that is physically separated from the wearer’s skin by a layer of insulating, moisture-wicking fabric. This approach is exemplified by soft robotics principles, which prioritize safety and organic interaction.

A truly professional design accounts for the reality of the human body. A combination of conformal coating, modular design with snap-out electronics for servicing, and physical insulation is the only way to guarantee that a two-hour performance doesn’t end in failure due to a single drop of sweat.

How to Navigate the Bio-Ethical Boundaries of Integrating Robotics into Performance Art?

Once you have mastered the physics, the electronics, and the code, a final, more profound question emerges: what are the ethical implications of creating a garment that thinks, reacts, and communicates on its own? When fashion incorporates robotics and biosensors, it crosses a line from being a passive object to an active participant in our social interactions. This elevates the designer’s responsibility from simple aesthetics to the realm of bio-ethics.

Consider a dress that uses the wearer’s biosignals—like heart rate or galvanic skin response—to express emotion. While this could be a powerful tool for non-verbal communication, it also raises questions of privacy and consent. Is the garment broadcasting the wearer’s genuine emotional state, or a technologically mediated version of it? Designer Anouk Wipprecht addresses this by focusing on the playful and therapeutic potential of the technology.

I use the playful aspect of the unicorn to make younger wearers feel more comfortable. This allows me to collect genuine data… A technology that can listen to the body can predict diseases and reduce anxiousness, but I also look at how it can be fun and expressive. I’m interested in non-verbal communication, fashion triggers imagination and can help people with autism, dementia or depression.

– Anouk Wipprecht, Interview at Milan Fashion Week

The most famous exploration of this boundary is Wipprecht’s “Spider Dress,” which actively defends the wearer’s personal space. This is not just a technological feat; it is a statement about bodily autonomy and consent. The garment enforces social boundaries that are often violated, particularly for women.

As a designer of kinetic fashion, you are not just creating objects of beauty. You are creating social-robotic systems. You have a responsibility to consider the psychological and ethical impact of your work. Will your creation empower the wearer, or will it exploit them? Will it foster connection, or will it create new forms of alienation? The answers to these questions are as important as any circuit diagram.

To create fashion that truly lives, you must first become its engineer. Begin by analyzing the fundamental physics of your chosen fabric and actuator, for it is in mastering these constraints that true art is born. Evaluate the forces, calculate the power requirements, and design for failure, because only then will your garment survive the brutal reality of the runway and achieve a moment of pure, engineered magic.
